PRA-MPS3
PRAESENSA Multifunction Power Supply, Large
Fully supervised mains-to-DC power supply for Bosch PRAESENSA, powering up to three amplifiers and the system controller, with single 12 V battery backup, 6-port Ethernet switch and amplifier lifeline. EN 54-4 certified.
Description
The PRA-MPS3 combines several support functions in one 2U unit to power and serve other PRAESENSA devices. It converts mains power to supervised 48 V DC for up to three amplifiers and 24 V DC for the system controller, and charges a single 12 V backup battery, which is simpler to install and maintain than conventional 24 V or 48 V battery banks.
A built-in 6-port Ethernet switch (five RJ45 ports, two with PoE for call stations, plus one SFP port for fibre) supports redundant network cabling with RSTP. Eight control inputs and eight control outputs connect fire alarm triggers and external equipment, and the unit provides an analogue lifeline backup audio path to each connected amplifier.
The power supply is certified to EN 54-4 for voice alarm power supply equipment, making it suitable for life-safety installations in hospitals, schools and public buildings.
Trinity Solutions sizes PRAESENSA power supplies and batteries to the required standby and alarm durations as part of every system design.
Specification
Electrical
| Mains input | 115 to 240 V AC (102 to 264 V AC tolerance), 50/60 Hz |
|---|---|
| Amplifier outputs | 3 x 48 V DC (A/B), 5.5 A each |
| Controller output | 24V DC (A/B) |
| Backup battery | Single 12 V battery, with temperature sensor |
Interfaces
| Lifeline outputs | 3 (to amplifiers 1 to 3) |
|---|---|
| Control inputs | 8 |
| Control outputs | 8 |
Network
| Ethernet ports | 5 x RJ45 (ports 1 and 2 PoE) + 1 x SFP |
|---|---|
| PoE | IEEE 802.3af |
Certification
| Emergency | EN 54-4, ISO 7240-4, EN 54-16, ISO 7240-16 |
|---|
Mechanical
| Dimensions (H x W x D) | 88 x 483 x 400 mm |
|---|---|
| Mounting | 19-inch rack, 2U |
| Weight | 11.8kg |
Supply & support
Supplied through Trinity Solutions FZC from Sharjah, with delivery across all seven Emirates. Where the installation falls inside one of our engineering disciplines we can specify, commission and maintain the equipment as well as supply it.
Lead times vary by manufacturer and current stock position. Send the model number and we will confirm availability before quoting.
Others in this range
More from Voice Alarm and Bosch.
PRA-CSLD
PRAESENSA Desktop LCD Call Station
Networked desktop call station with gooseneck microphone and 4.3-inch colour touch screen for Bosch PRAESENSA PA/VA systems. PoE powered with dual network ports. EN 54-16 certified.
PRA-AD608
PRAESENSA Amplifier, 600 W 8-Channel
600 W, 8-channel networked power amplifier for 100 V / 70 V loudspeaker lines in Bosch PRAESENSA PA/VA systems, with flexible power sharing across channels and an integrated spare channel. EN 54-16 certified.
PRA-SCL
PRAESENSA System Controller, Large
IP-networked system controller and message manager for Bosch PRAESENSA PA/VA systems, handling up to 250 networked devices and 500 zones. EN 54-16 certified, with dual-redundancy option.

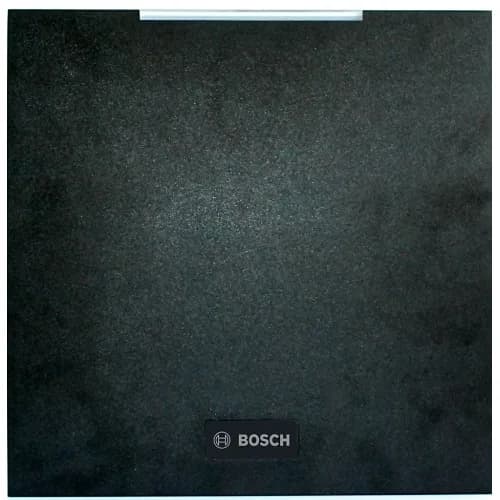

ARD-SER90-WI
