DS-7616NXI-K2/16P
16-Channel 4K AcuSense PoE Network Video Recorder
Pro Series 16-channel 4K NVR with 16 built-in PoE ports, AcuSense human and vehicle detection, 160 Mbps incoming bandwidth and two SATA drive bays in a 1U chassis.
Description
The Hikvision DS-7616NXI-K2/16P is a 16-channel network video recorder from the Pro Series. Sixteen built-in Power over Ethernet ports power and connect IP cameras directly, so small and medium installations need no separate PoE switch.
AcuSense deep-learning analytics separate people and vehicles from other movement, which cuts false alarms from animals, rain or moving foliage and makes searching recorded footage much faster. The recorder supports H.265+ compression to reduce storage and bandwidth, high-resolution IP cameras, and 4K output to a local monitor over HDMI.
Two SATA bays hold the recording drives, and the unit fits a standard 19-inch rack in 1U. It can be viewed and managed remotely through Hikvision's client software and mobile app.
Trinity Solutions designs CCTV systems to the identification standard each area requires, and sizes storage to the retention period specified by the client or authority.
Specification
Recording
| IP video inputs | 16channels |
|---|---|
| Incoming bandwidth | 160Mbps |
| Compression | H.265+, H.265, H.264+, H.264 |
| Camera resolution | Up to 12 MP |
Analytics
| AcuSense | Human and vehicle detection |
|---|
Network
| PoE ports | 16 |
|---|
Storage
| SATA bays | 2 |
|---|
Outputs
| Video | 1 x HDMI (4K), 1 x VGA |
|---|
Mechanical
| Chassis | 1U, 19-inch |
|---|---|
| Dimensions (W x D x H) | 385 x 315 x 52 mm |
| Weight | approx. 3 kg |
Supply & support
Supplied through Trinity Solutions FZC from Sharjah, with delivery across all seven Emirates. Where the installation falls inside one of our engineering disciplines we can specify, commission and maintain the equipment as well as supply it.
Lead times vary by manufacturer and current stock position. Send the model number and we will confirm availability before quoting.
Others in this range
More from Recorders & Storage and Hikvision.

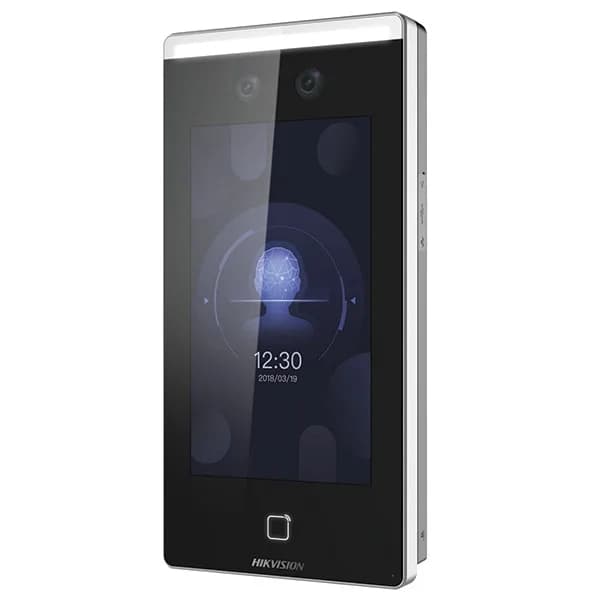

DS-K1T671M
